SPEED100 / Connections

Connections

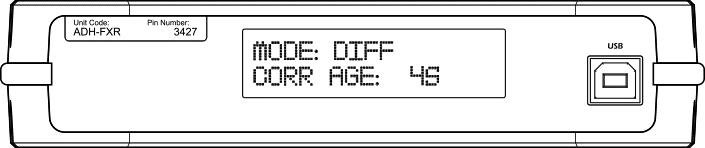

Front

Serial - 9 way d-type male

Pin	Function
2	Race Technology format data Rx
3	Race Technology format data Tx
4	Do not connect
5	RS232 1 & 2 Ground
6	RTCM correction data Rx
7	10-15v power in/out

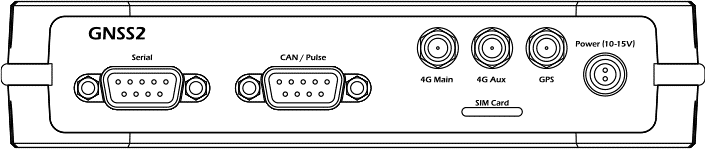

Rear

Modem/NMEA - 9 way d-type male

Pin	Function
2	RTCM correction data Rx
3	RTCM correction data Tx
4	NMEA Tx
5	Ground
7	10-15v power in/out

CAN - 9 way d-type male

Pin	Function
2	CAN Low
3	Ground
5	Ground
6	Ground
7	CAN High
9	10-15v power in/out
Termination	Non fitted

4G Main and Aux

SMA female connectors

The 4G Main antenna is used for transmission and reception and must have an antenna connected even if there is no SIM card and the 4G LTE connection is not being used.

The 4G Aux antenna is an optional antenna for improved signal reception in areas of poor coverage

Trigger input

BNC socket

Trigger events marked on rising and falling edges, internally pulled to ground, drive to 5v or 12v to activate

Pulse output

BNC socket

5v square wave with rising edge aligned to top of second

GPS

SMA female connector

SPEED100 requires a multi-constellation, dual or triple frequency GNSS antenna

Power connector

LEMO 2 pin connector part number FGG.0B.302.CLAD52Z

Power Connector pinout details
Pin	Function
1	+ve
2	GND
