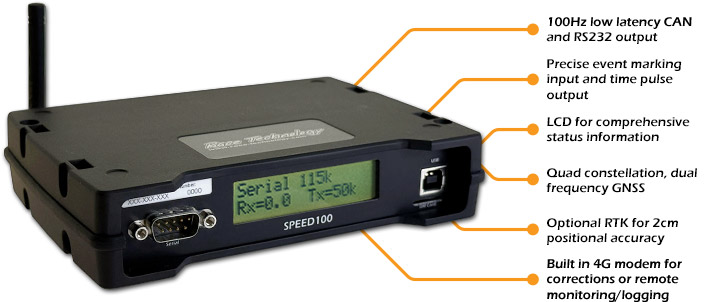

SPEED100
- 100Hz low latency CAN and RS232 output
- Precise event marking input and time pulse output
- LCD for status information
- Quad constellation, dual frequency GNSS
- Optional RTK for 2cm positional accuracy
- Built in 4G modem for corrections or remote monitoring/logging
The SPEED100 is a multi constellation GNSS receiver with built in 4G LTE radio modem, with output update rate of 100Hz. The SPEED100 can be upgraded to RTK 2cm position when connected to either a web or radio modem based correction source, data can be also be optionally logged to the Race Technology cloud service.
Typical speed accuracy is 0.03 m/s and position accuracy of 1.2m without corrections (0.02cm with RTK option) make this is very useful tool for fast update rate general purpose speed and position measurement.
The SPEED100 is intended for standalone operation where there is a requirement for robust, fast update rate speed / position / distance / gradient measurement without any concerns on installation orientation or setup.
Corrections can be sourced either from a Race Technology base station, or from an NTRIP subscription. In addition to the web based corrections, RTCM corrections can be provided in to the unit via a radio modem if desired.
The LCD is used to show current system status information.
For more information, please follow the links bellow:
